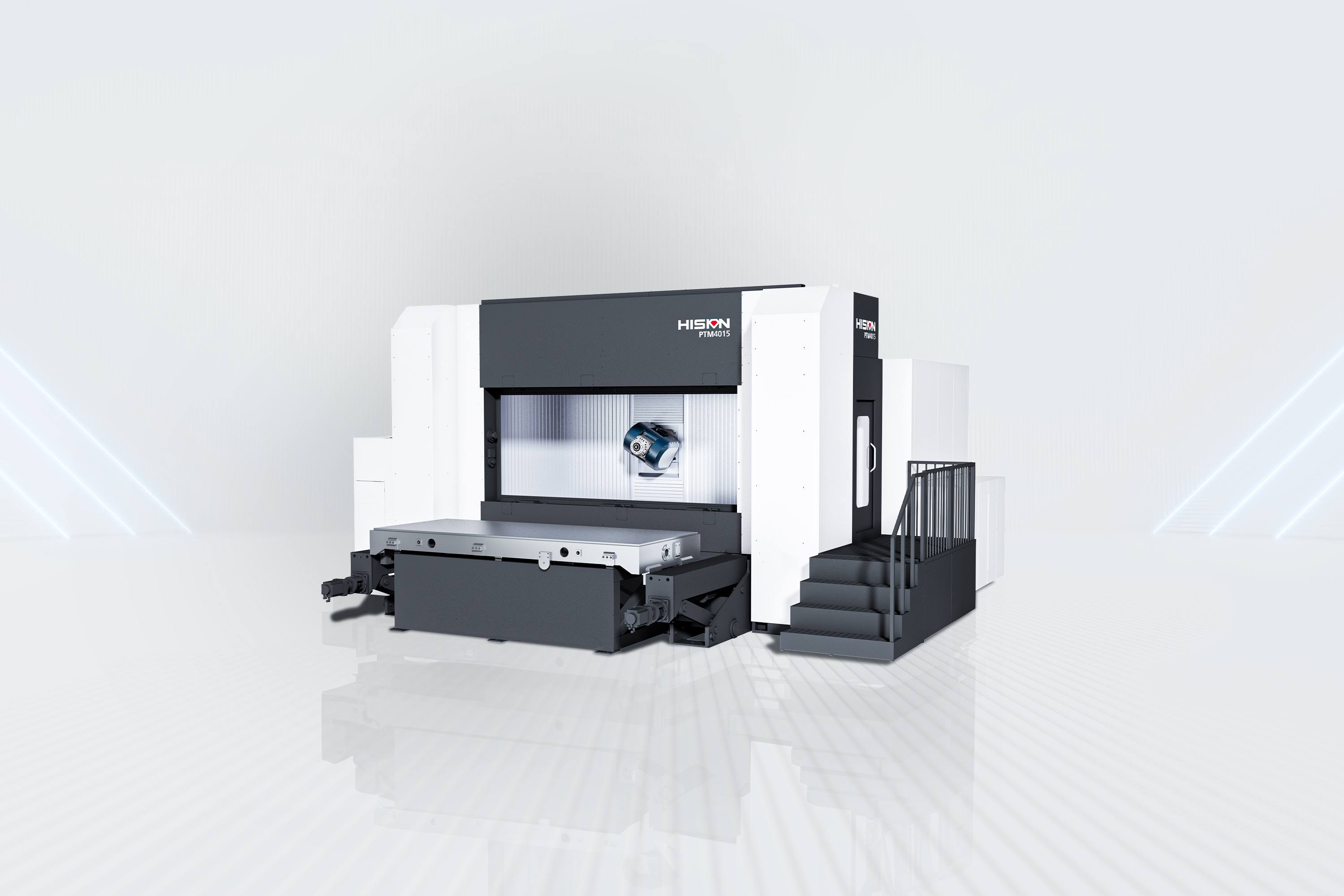

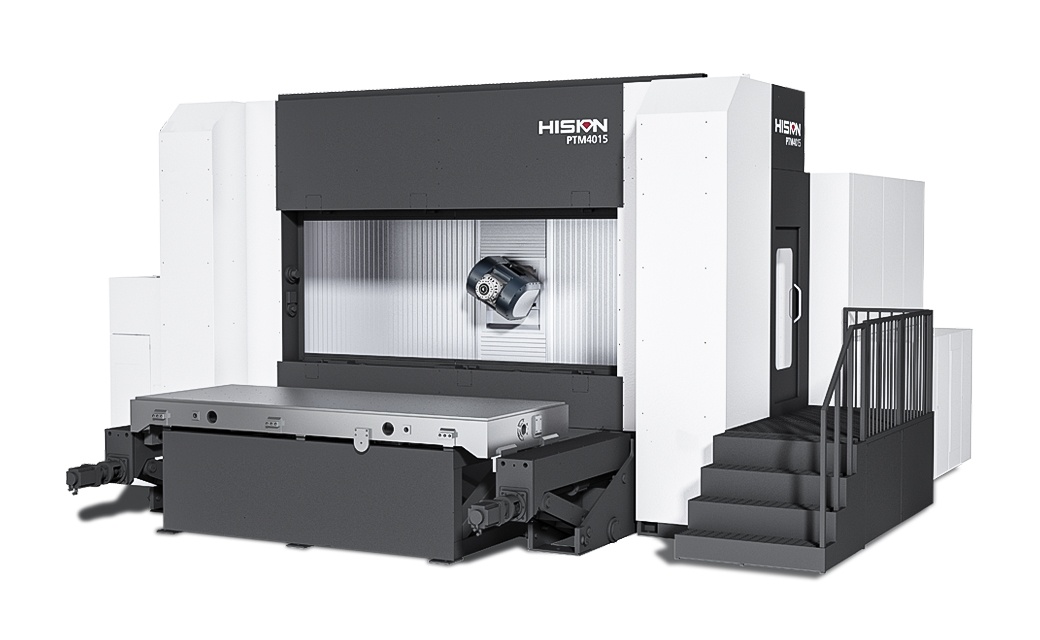

PTM4015

Flip-Table Horizontal Five-Axis Machining Center
The PTM4015 enables high-speed, precise surface machining for aerospace, rail, and automotive industries. It excels in processing complex aluminum alloy thin-walled parts and medium-to-large body panels with five-axis flexibility.
Work Range X/Y/Z

1500/850/800 mm

Max. Cutting Speed X/Y/Z

20/20/20 m/min

Rapid Traverse Speed X/Y/Z

24/24/24 m/min

Spindle Power

18.5/22 kW

Spindle Torque

95.5/167 N·m

Highlights

Rigid Bed and Column

High-strength cast iron ensures rigidity and vibration damping. X-axis uses precision roller guides, a four-motor gear-rack system, and CNC-synchronized control with grating scale feedback for high accuracy.

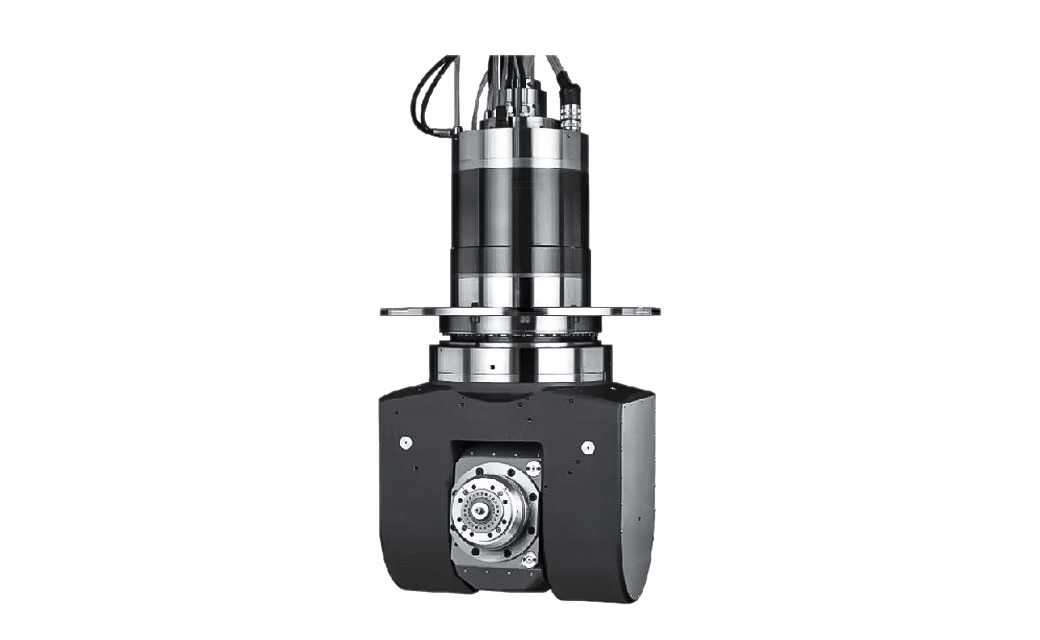

A/C Dual Axis Rotating Heads

A/C axes use high-load bearings and torque motors for precise five-axis machining. Coaxial encoder enables rigid tapping, while oil-air spindle lubrication ensures high-speed performance and overload capacity.
