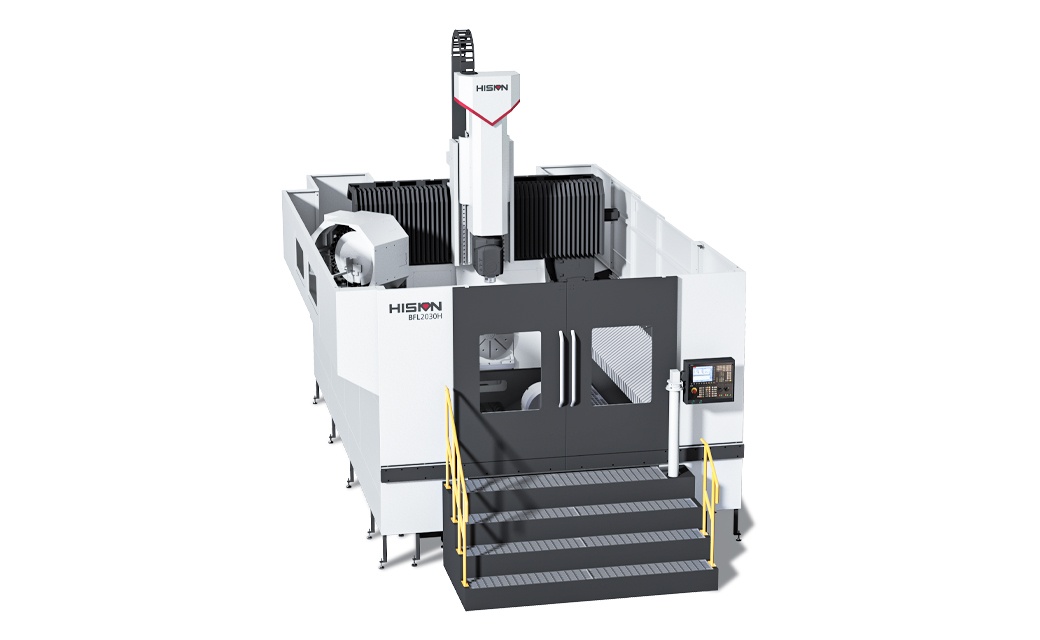

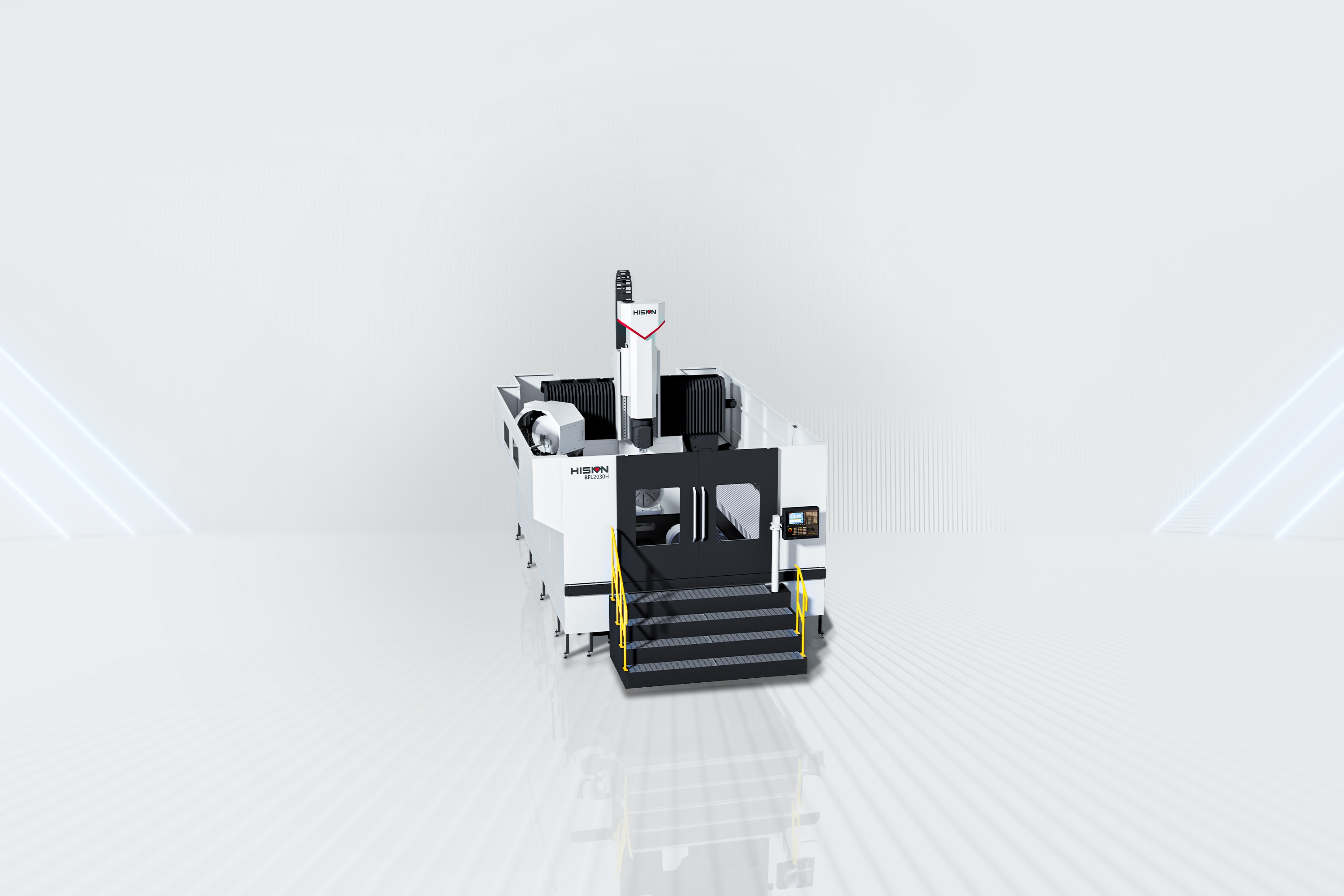

BFL2030H Series

Five-Axis High-Speed Milling Center
High-speed gantry machining center with integrated beam and column structure. Optional fourth-axis rotary table enables precision machining of integrated die-cast components for electric vehicle compartments and floors.
Work Range X/Y/Z

650/1000/550 mm

Max. Cutting Speed X/Y/Z

20/20/20 m/min

Rapid Traverse Speed X/Y/Z

36/36/36 m/min

Spindle Power

18.5/22 kW

Spindle Torque

177/292 N·m

Highlights

Retractable A/C Head

Retractable A/C head design reduces column-beam height, enhancing structural rigidity and precision machining performance.

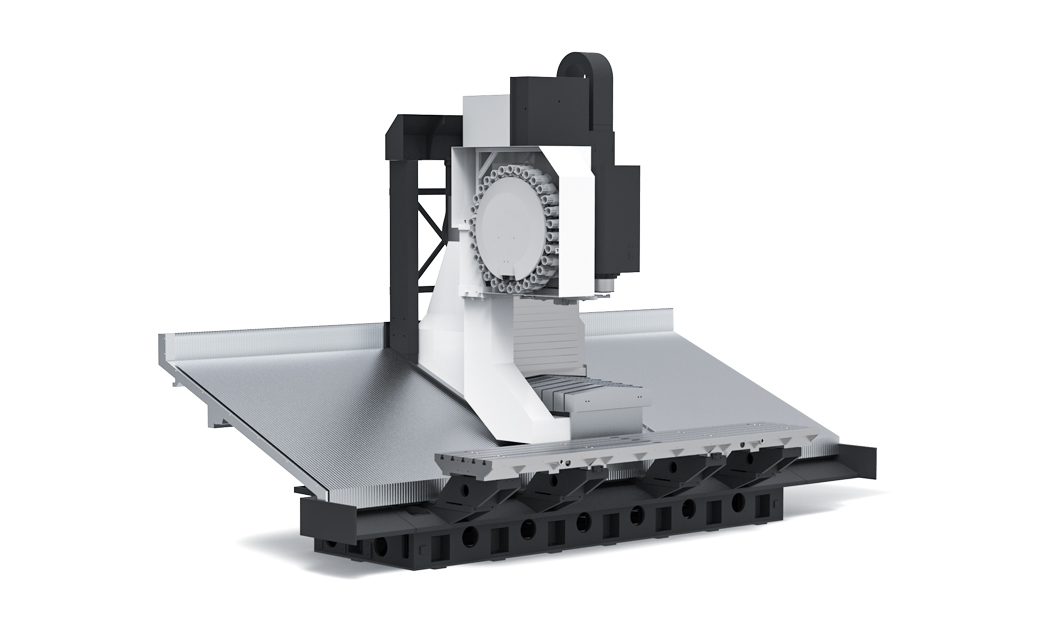

Gantry Suspension Compensation

Beam suspension technology enhances machining accuracy, structural rigidity, and operational stability in high-load conditions.

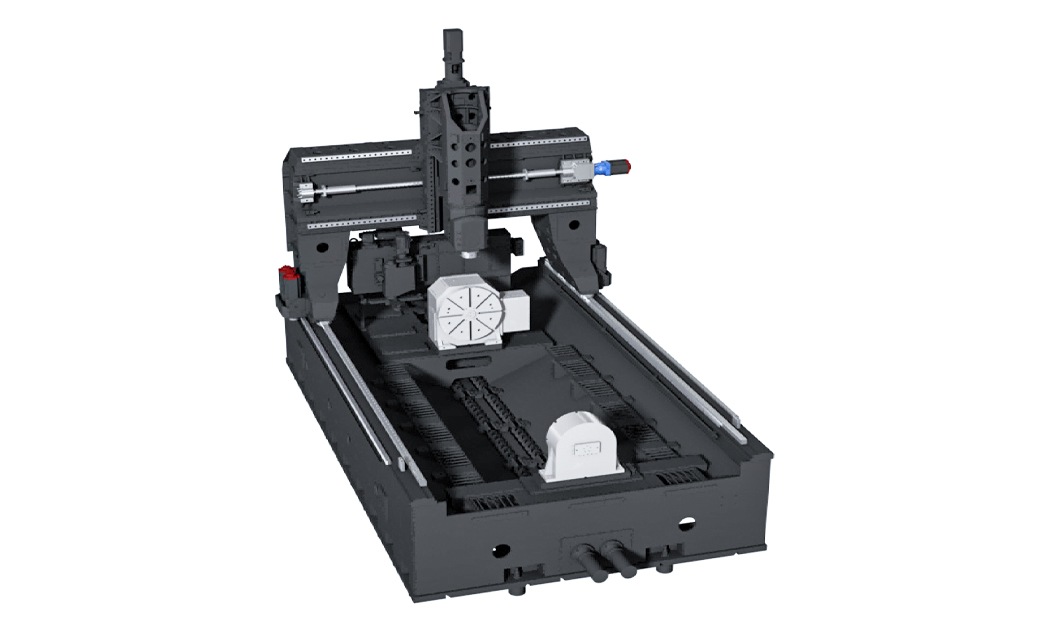

Dual Motor Synchronization

Synchronized dual-motor drive eliminates backlash for precise motion, plus dual screw chip conveyors enable efficient chip evacuation.

Customizable Worktable

Removable worktable for adaptable machining setups, supporting a wide range of production needs.

Fourth-Axis for Large Parts

1850mm large-diameter rotation with 360° movement for machining complex parts in a single setup.
