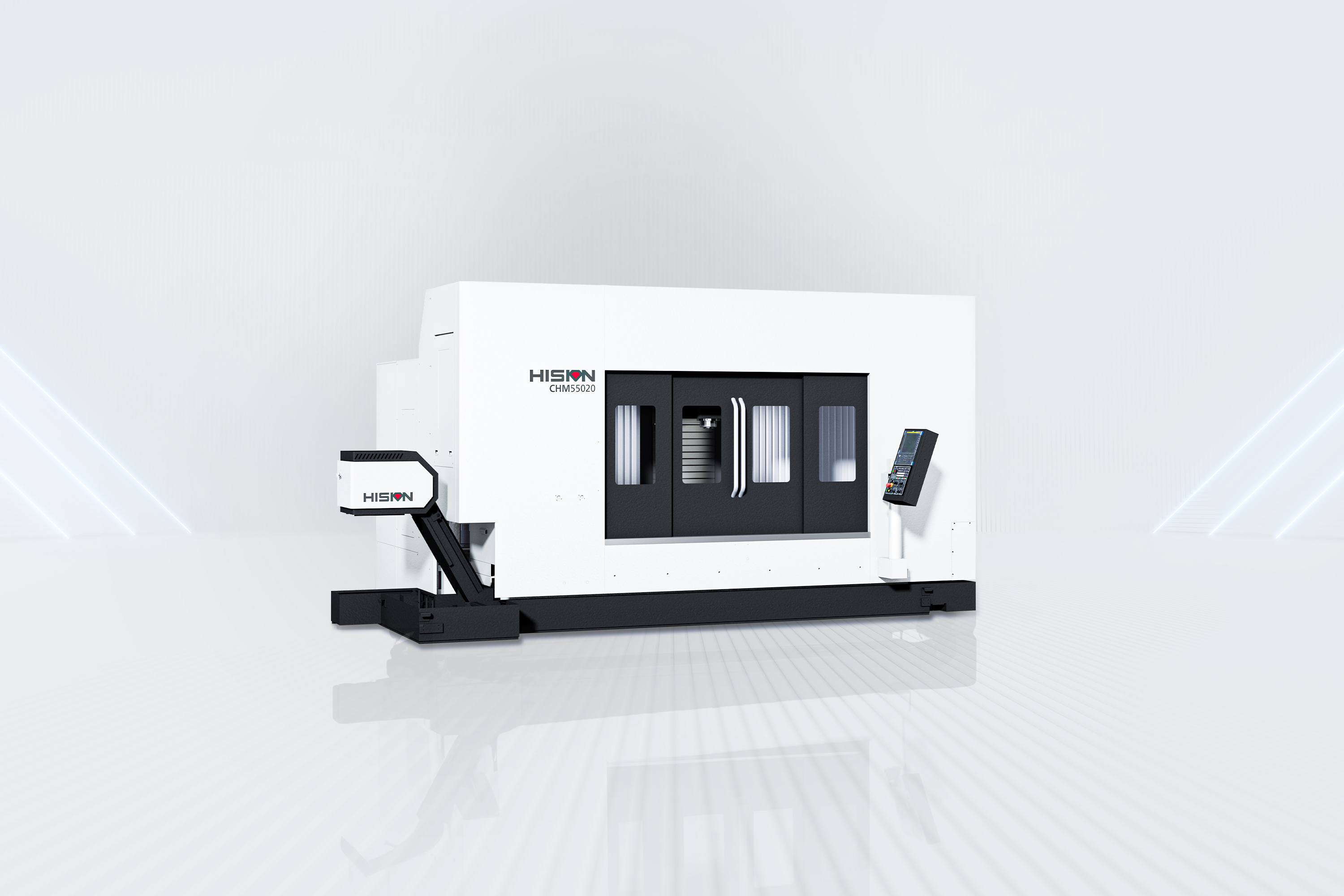

CHM Series

Long Stroke Vertical Machining Center Series

Table-fixed, spindle-moving machining centers facilitating easy worktable access. Optional rotary fourth-axis available, perfect for rectangular workpieces, curved surfaces, inclined holes, and aluminum alloy machining.

Work Range X1-X2

3000 (+700mm)

Work Range Y1/Y2

2000mm

Work Range Z1/Z2

1250mm

Rapid Traverse Speed X/Y/Z

110/110/110m/min

Spindle Power

20/26 kW

Highlights

Built-in Electric Spindle

Integrated direct-drive spindle accelerates from 0–8000 RPM in 0.8 sec, ensuring vibration-free high precision and efficient power transfer.

24-Tool Servo Magazine

Intelligent servo-driven tool magazine with 1.2 sec tool-change, protective doors, and expandable capacity up to 30 tools, optimizing machining efficiency.

Ergonomic Machine Design

Table-fixed, spindle-moving setup simplifies workpiece handling. Adjustable control panel and large access doors streamline crane/hoist operations.
