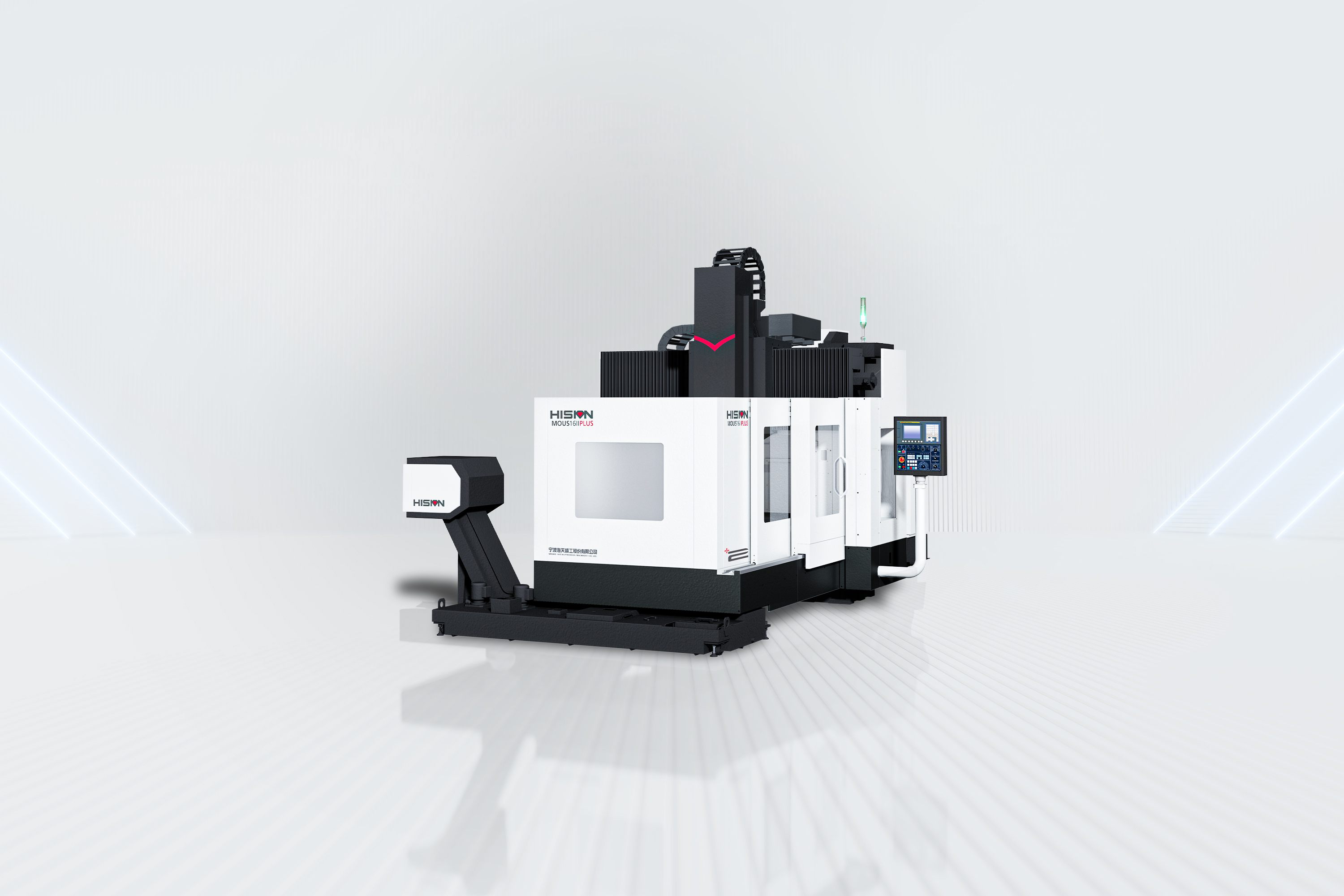

MOUS II PLUS

Fixed Beam, High-Speed Gantry Machine

Advanced mold machining centers featuring patented technology, high modal frequency, dynamic performance, superior ergonomics, and excellent thermal stability. Equipped with a high-speed electric spindle, ideal for mold processing.

Work Range X/Y/Z

2500/2000/800 mm

Max. Cutting Speed X/Y/Z

15/15/15 m/min

Rapid Traverse Speed X/Y/Z

15/20/15 m/min

Spindle Power

20/26 kW

Spindle Torque

26/34 N·m

Highlights

Compact Gantry Frame

Stepped beam-column design with short spindle-to-guideway distance reduces overturning torque, increasing structural rigidity and machining accuracy.

High-Performance Spindle

Independently developed direct-drive spindle (12,000/15,000 RPM), built-in motor, high torque, and constant power at high speeds with minimized vibration.

24-Tool Magazine

Smooth-operating magazine with fast tool changes, protective measures to prevent chip contamination in non-machining areas.

Tool Measurement System

Monitors tool length, radius, breakage, wear, and damage, enhancing machine reliability and reducing downtime.

Tool Oil Mist Cooling

Extends tool life and improves mold precision with efficient lubrication, enhancing surface finish and machining reliability.
