HTC II Series

CNC Lathe Series

The TC Series features a 45° integrated cast bed structure with hardened and ground guideways. All castings are optimized through finite element analysis, ensuring high precision and stability of the machine tool. Comprehensive automation interfaces and modular automatic protection design provide a foundation for quick automation implementation.

Max. Turning Diameter

300 mm

Max. Turning Length

290 mm

Max. Spindle Speed

4500 rpm

Main Motor Power

11/15 kW

Spindle Torque

158/211 N·m

Highlights

Electric Spindle as Standard

The spindle’s built-in motor achieves “zero transmission” for high reliability and precision. Its quick acceleration and deceleration enhance efficiency, providing high torque at low speeds and strong performance at high speeds.

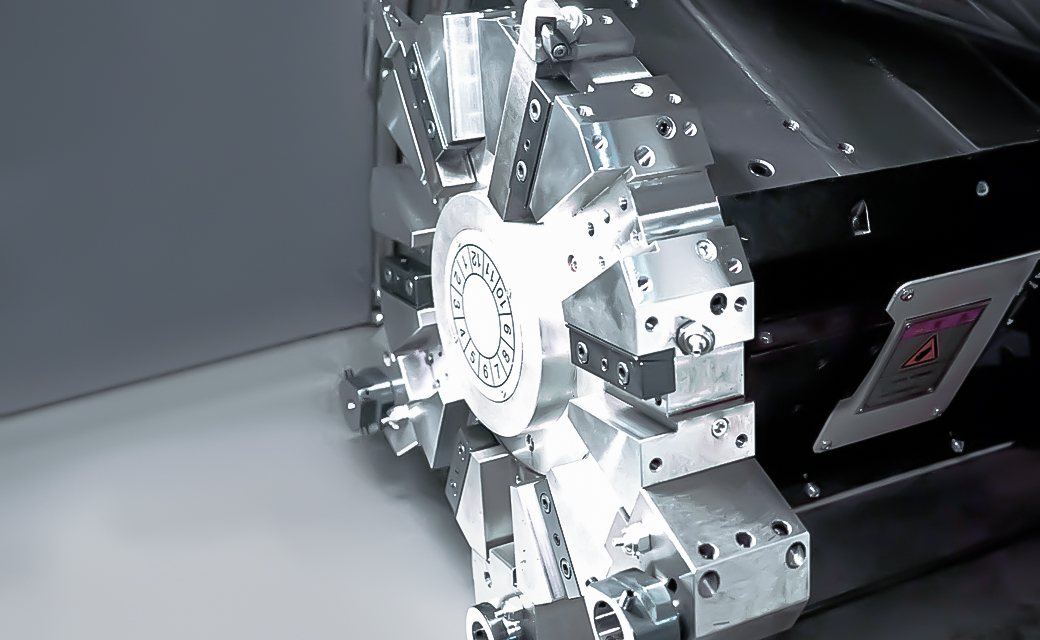

Servo Turret (Optional Power Turret)

Servo turrets offer fast turret indexing and reliable transmission components. The use of servo turrets enables synchronous tool changing during the machine’s return-to-zero process, enhancing production efficiency.

Servo Tailstock (optional)

Controlled by a servo motor, it offers quick response and precise control of position and thrust, facilitating automation.

Rear Chip Removal

The HTC II Series adopts a rear chip removal method, featuring a compact structure and small footprint, making it suitable for automated machining.

Automatic Modular Protection

The modular design of automatic doors and automatic skylights ensures easy installation and enhanced protection.
